Remote Game Controller System

Table of Contents

Introduction
Architecture
WebSocket Communication
Class Descriptions
Message Types
Error Handling and Synchronization

Introduction

This system enables asynchronous communication between remote game instances using WebSockets.
It manages remote interactions and Game State Updates (GSU) through a message-based approach.

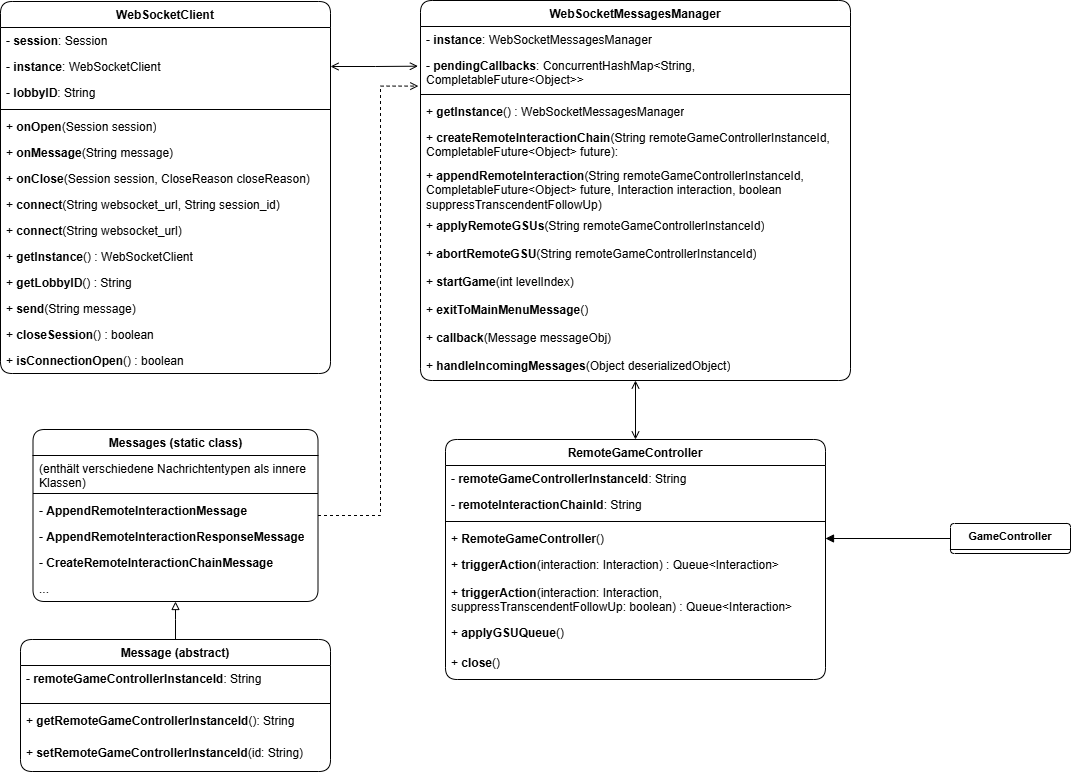

Architecture

The system consists of the following main components:

WebSocketMessagesManager
- Manages pending requests and responses.
- Sends and receives messages via WebSockets.
RemoteGameController
- Creates and manages an interaction chain for remote game actions.
- Synchronizes actions and processes messages.
Messages Classes
- Defines various message types for communication.
WebSocketClient
- implements the Websocket itself (using Jakarta)
- is responsible for creating and managing a session and holds the lobbyID


WebSocket Communication

Communication is handled through WebSockets with JSON-formatted messages.
Each request is identified by a unique remoteGameControllerInstanceId.

Sending a message:
- toJson() is profited by lib GDX
  WebSocketClient.getInstance().send(json.toJson(new Messages.AppendRemoteInteractionMessage(...)));
receiving and processing a message:

    public static void handleIncomingMessages(Object deserializedObject) {
           switch (deserializedObject) {
               case Messages.AppendRemoteInteractionMessage messageObj -> {
                   // Process the message
               }
               //... for all message types
           }
       }

Class Descriptions

WebSocketMessagesManager

Responsibilities:

Manages pending callback futures for asynchronous responses.
Sends and receives WebSocket messages.
Routes incoming messages to appropriate handlers.

Key Methods:

public void createRemoteInteractionChain(String remoteGameControllerInstanceId, CompletableFuture<Object> future)

Creates a new remote interaction chain and stores the future object.

public void callback(Message messageObj)

Completes the future object when a response is received.

public static void handleIncomingMessages(Object deserializedObject)

Handles incoming WebSocket messages asynchronously.

RemoteGameController

Responsibilities:

Creates remote interaction chains.
Ensures synchronization using CompletableFuture.
Sends actions and receives feedback.

Key Methods: public Queue<Interaction> triggerAction(Interaction interaction, boolean suppressTranscendentFollowUp)

Triggers an interaction and waits for a response.

public void applyGSUQueue()

Applies pending Game State Updates.

Message and Messages

Message (Base Class):

Inherited by all message types.

public abstract class Message {
    private String remoteGameControllerInstanceId;
}

Messages (Various Message Types):

Defines various message types for communication

   public static class AppendRemoteInteractionMessage extends Message
   public static class CreateRemoteInteractionChainMessage extends Message
   public static class ApplyRemoteGSUsMessage extends Message
   public static class startGameMessage
   //...

Message Types:

AppendRemoteInteractionMessage

Sends a request to append a remote interaction.
Fields:
- interaction: The interaction to append.
- suppressTranscendentFollowUp: Whether to suppress follow-ups.

AppendRemoteInteractionResponseMessage

Response message containing the result of appending a remote interaction.
Fields:
- interactions: A queue of resulting interactions.

CreateRemoteInteractionChainMessage

Requests the creation of a remote interaction chain.
Fields:
- remoteGameControllerInstanceId: Unique identifier for the controller.

CreateRemoteInteractionChainResponseMessage

Response to creating a remote interaction chain.
Fields:
- remoteInteractionChainId: The newly assigned interaction chain ID.

ApplyRemoteGSUsMessage

Requests the application of all pending Game State Updates.
Fields:
- remoteGameControllerInstanceId: Unique identifier.

AbortRemoteGSUsMessage

Requests to abort pending Game State Updates.
Fields:
- remoteGameControllerInstanceId: Unique identifier.

lobbyIdMessage

Contains a lobby ID.
only used when a lobby is created with the keyword new as id as response
Fields:
- lobbyId: The identifier of the game lobby.

startGameMessage

Description: Requests to start the game.
Fields:
- levelIndex: The level to start.

exitToMainMenuMessage

Requests to return to the main menu.
Fields: None.

Error Handling and Synchronization

Timeout Handling: If no response is received within 3 seconds, the action is considered failed.

try {
   Object returnObj = future.get(3, TimeUnit.SECONDS);
} catch (TimeoutException e) {
   System.err.println("TIMEOUT in triggerAction");
}

Asynchronous Processing with CompletableFuture: Ensures that message processing does not block execution.

CompletableFuture.runAsync(() -> {
    try {
        // Process message
    } catch (Exception e) {
        System.err.println("Error: " + e.getMessage());
    }
});

Last modified: 09 February 2025
